LED照明
HRD91
核心功能与特点

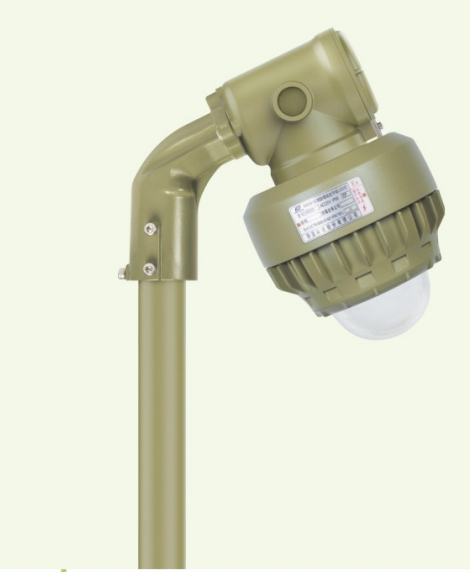

HRD91 为华荣隔爆型 LED 防爆平台灯，采用无铜铝合金压铸壳体，Ex db IIC 防爆结构，防护等级 IP66、防腐等级 WF2，可适用于 1 区、2 区爆炸性气体及 21、22 区粉尘危险场所。灯具采用光源腔、电器腔、接线腔三腔独立专利结构，导流散热槽实现高效散热，搭配高硼硅钢化玻璃，外露紧固件选用不锈钢材质，抗冲击、耐盐雾腐蚀，适配石化、化工厂区等严苛工业环境；搭载进口 LED 芯片，蜂窝式广照配光，照度均匀无眩光，相比传统光源节能 55% 以上，具备 IECEX、ATEX 国际防爆认证华荣防爆。
灯具配置胶封恒流驱动电源，支持宽电压输入，具备短路、过压、过热多重保护，电磁兼容性优异，可抵御电网波动干扰，光源寿命可达 50000 小时以上。支持吊杆、吸顶、壁挂、立杆等多种安装形式，可选配防爆应急电源、智能传感及无线通讯模块，满足装置平台、管廊、罐区等多场景的照明需求，维护便捷，广泛应用于大型石化一体化项目危险区域照明。
灯具配置胶封恒流驱动电源，支持宽电压输入，具备短路、过压、过热多重保护，电磁兼容性优异，可抵御电网波动干扰，光源寿命可达 50000 小时以上。支持吊杆、吸顶、壁挂、立杆等多种安装形式，可选配防爆应急电源、智能传感及无线通讯模块，满足装置平台、管廊、罐区等多场景的照明需求，维护便捷，广泛应用于大型石化一体化项目危险区域照明。
技术参数
产品型号 HRD91（WAROM 华荣）
防爆标志 Ex db IIC T6 Gb；Ex tb IIIC T80℃ Db
适用危险区域 1 区、2 区爆炸性气体环境；21 区、22 区可燃性粉尘环境华荣防爆
额定电压 AC100‑277V，50/60Hz（宽电压）
功率档位 30W、50W、70W、100W、120W
参考光通量 3150lm(30W)、5450lm(50W)、7955lm(70W)、10800lm(100W)、12930lm(120W)
光源 进口 LED 芯片，蜂窝广照配光
防护等级 IP66
防腐等级 WF2（耐盐雾腐蚀）
壳体材质 无铜压铸铝合金，高硼硅钢化玻璃；外露紧固件不锈钢
结构形式 光源腔、电器腔、接线腔三腔独立专利结构，导流散热槽散热
驱动 胶封灌封恒流驱动；具备短路、过压、过热保护，EMC 优异
寿命 L70≥50000h
引入规格 G3/4″，适配电缆 φ10‑φ14mm，接线端子最大 2.5mm²
安装方式 吊杆、吸顶、壁挂、护栏立杆、法兰安装华荣防爆
可选配置 防爆应急电源、智能传感器、无线通讯模块
产品认证 IECEX、ATEX、CU‑TR 国际防爆认证，国内防爆合格证华荣防爆
执行标准 GB3836、GB12476，IEC60079 系列标准
适用场景 石化装置平台、管廊、罐区、化工厂区危险区域照明
防爆标志 Ex db IIC T6 Gb；Ex tb IIIC T80℃ Db
适用危险区域 1 区、2 区爆炸性气体环境；21 区、22 区可燃性粉尘环境华荣防爆
额定电压 AC100‑277V，50/60Hz（宽电压）
功率档位 30W、50W、70W、100W、120W
参考光通量 3150lm(30W)、5450lm(50W)、7955lm(70W)、10800lm(100W)、12930lm(120W)
光源 进口 LED 芯片，蜂窝广照配光
防护等级 IP66
防腐等级 WF2（耐盐雾腐蚀）
壳体材质 无铜压铸铝合金，高硼硅钢化玻璃；外露紧固件不锈钢
结构形式 光源腔、电器腔、接线腔三腔独立专利结构，导流散热槽散热
驱动 胶封灌封恒流驱动；具备短路、过压、过热保护，EMC 优异
寿命 L70≥50000h
引入规格 G3/4″，适配电缆 φ10‑φ14mm，接线端子最大 2.5mm²
安装方式 吊杆、吸顶、壁挂、护栏立杆、法兰安装华荣防爆
可选配置 防爆应急电源、智能传感器、无线通讯模块
产品认证 IECEX、ATEX、CU‑TR 国际防爆认证，国内防爆合格证华荣防爆
执行标准 GB3836、GB12476，IEC60079 系列标准
适用场景 石化装置平台、管廊、罐区、化工厂区危险区域照明
← Back to Products
LED Lighting
HRD91
Key Features
HRD91 is Warom flame‑proof LED platform light. It adopts copper‑free die‑cast aluminum alloy housing with Ex db IIC explosion‑proof construction, IP66 protection degree and WF2 anti‑corrosion grade, suitable for Zone 1, Zone 2 explosive gas atmospheres as well as Zone 21, Zone 22 dust hazardous locations. The luminaire features a patented three‑chamber independent structure consisting of light source chamber, driver chamber and wiring chamber. The flow‑guided heat dissipation slots deliver efficient heat dissipation. Equipped with high‑boron‑silicon tempered glass and stainless‑steel exposed fasteners, it offers high impact resistance and salt‑spray corrosion resistance for harsh working conditions in petrochemical and chemical plants. Fitted with imported LED chips and honeycomb wide‑beam light distribution, it provides even illuminance without glare and achieves over 55 % energy‑saving compared with conventional light sources. It carries IECEX and ATEX international explosion‑proof certifications issued by Warom.
The luminaire is equipped with potting constant‑current driver supporting wide‑voltage input, with multi‑level protections against short‑circuit, over‑voltage and over‑temperature. It delivers excellent EMC performance to resist power‑grid fluctuation, with an LED service life of more than 50 000 hours. Multiple installation options are available including pendant mounting, ceiling mounting, wall mounting and pole mounting. Optional accessories include explosion‑proof emergency power supply, intelligent sensors and wireless communication modules. It is easy‑to‑maintain and widely applied for hazardous‑area lighting in large‑scale petrochemical integrated projects for process platforms, pipe galleries and tank farms.
工程术语备注（标书使用）
The luminaire is equipped with potting constant‑current driver supporting wide‑voltage input, with multi‑level protections against short‑circuit, over‑voltage and over‑temperature. It delivers excellent EMC performance to resist power‑grid fluctuation, with an LED service life of more than 50 000 hours. Multiple installation options are available including pendant mounting, ceiling mounting, wall mounting and pole mounting. Optional accessories include explosion‑proof emergency power supply, intelligent sensors and wireless communication modules. It is easy‑to‑maintain and widely applied for hazardous‑area lighting in large‑scale petrochemical integrated projects for process platforms, pipe galleries and tank farms.
工程术语备注（标书使用）
Technical Parameters
Product Model HRD91 (WAROM)
Explosion‑proof Mark Ex db IIC T6 Gb; Ex tb IIIC T80℃ Db
Applicable Hazardous Zones Zone 1, Zone 2 explosive gas atmospheres; Zone 21, Zone 22 combustible dust atmospheres
Rated Voltage AC100‑277V, 50/60Hz (Wide‑voltage input)
Power Ratings 30W, 50W, 70W, 100W, 120W
Reference Luminous Flux 3150lm (30W), 5450lm (50W), 7955lm (70W), 10800lm (100W), 12930lm (120W)
Light Source Imported LED chips, honeycomb wide‑beam light distribution
Ingress Protection IP66
Anti‑corrosion Grade WF2 (Salt‑spray corrosion resistant)
Housing Material Copper‑free die‑cast aluminum alloy, high‑boron‑silicon tempered glass; stainless‑steel exposed fasteners
Structure Type Patented three‑chamber independent structure consisting of light‑source chamber, driver chamber and wiring chamber, with flow‑guided heat‑dissipation slots
Driver Potted constant‑current driver; protections against short‑circuit, over‑voltage and over‑temperature, excellent EMC performance
Service Life L70 ≥ 50000 h
Cable Entry Specification G3/4″, suitable for cable φ10‑φ14 mm, max. terminal cross‑section: 2.5 mm²
Mounting Methods Pendant mounting, ceiling mounting, wall mounting, guardrail‑pole mounting, flange mounting
Optional Configurations Explosion‑proof emergency power supply, intelligent sensors, wireless communication modules
Certifications IECEX, ATEX, CU‑TR international explosion‑proof certifications, domestic explosion‑proof certificate
Applicable Standards GB3836, GB12476, IEC 60079 series standards
Application Scenarios Hazardous‑area lighting for petrochemical process platforms, pipe galleries, tank farms and chemical plants
Explosion‑proof Mark Ex db IIC T6 Gb; Ex tb IIIC T80℃ Db
Applicable Hazardous Zones Zone 1, Zone 2 explosive gas atmospheres; Zone 21, Zone 22 combustible dust atmospheres
Rated Voltage AC100‑277V, 50/60Hz (Wide‑voltage input)
Power Ratings 30W, 50W, 70W, 100W, 120W
Reference Luminous Flux 3150lm (30W), 5450lm (50W), 7955lm (70W), 10800lm (100W), 12930lm (120W)
Light Source Imported LED chips, honeycomb wide‑beam light distribution
Ingress Protection IP66
Anti‑corrosion Grade WF2 (Salt‑spray corrosion resistant)
Housing Material Copper‑free die‑cast aluminum alloy, high‑boron‑silicon tempered glass; stainless‑steel exposed fasteners
Structure Type Patented three‑chamber independent structure consisting of light‑source chamber, driver chamber and wiring chamber, with flow‑guided heat‑dissipation slots
Driver Potted constant‑current driver; protections against short‑circuit, over‑voltage and over‑temperature, excellent EMC performance
Service Life L70 ≥ 50000 h
Cable Entry Specification G3/4″, suitable for cable φ10‑φ14 mm, max. terminal cross‑section: 2.5 mm²
Mounting Methods Pendant mounting, ceiling mounting, wall mounting, guardrail‑pole mounting, flange mounting
Optional Configurations Explosion‑proof emergency power supply, intelligent sensors, wireless communication modules
Certifications IECEX, ATEX, CU‑TR international explosion‑proof certifications, domestic explosion‑proof certificate
Applicable Standards GB3836, GB12476, IEC 60079 series standards
Application Scenarios Hazardous‑area lighting for petrochemical process platforms, pipe galleries, tank farms and chemical plants
