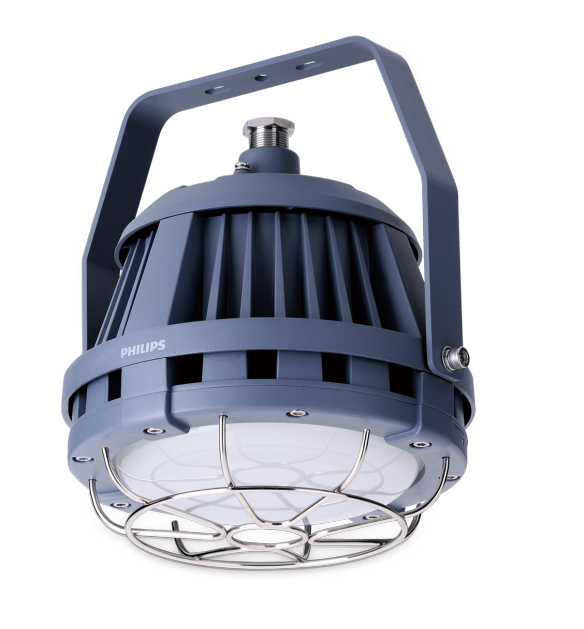

BY950P防爆灯

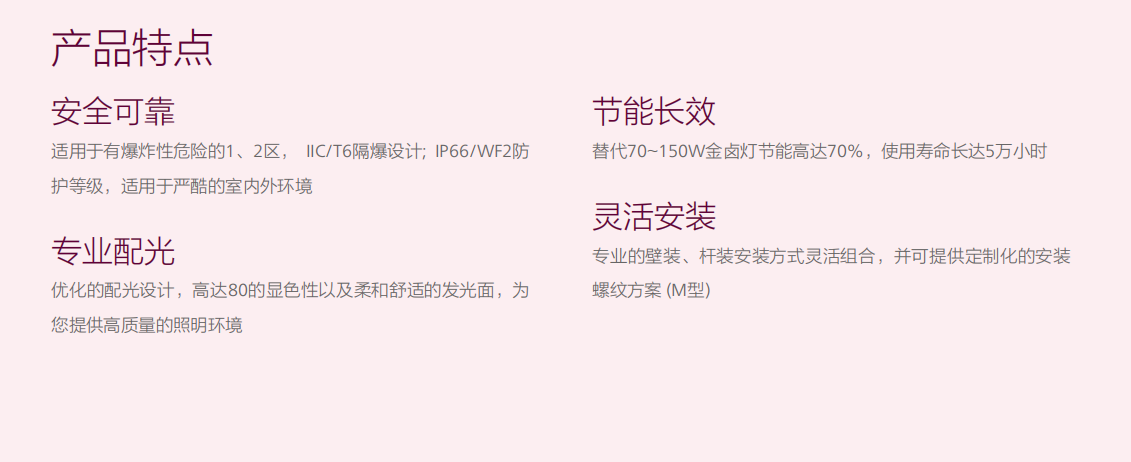

核心功能与特点
核心功能：
隔爆防爆安全照明：适用于爆炸性气体 1 区、2 区危险场所，IIC‑T6 防爆等级，外壳承受内部爆炸，阻止爆炸外传，满足化工、油气、电力等高危区域安全照明需求。
全天候环境适应：IP66 防护 + WF2 防腐蚀，可室外使用，抗淋雨、粉尘、盐雾腐蚀，适配室内外严苛工况。
LED 高效照明输出：多配光可选，CRI＞80 高显色，光线柔和均匀，无频闪，满足平台、装置区、仓库作业照明要求。
节能降本：LED 光源，替代传统 70‑150W 金卤灯，综合节能最高 70%，光源寿命 50000 小时，大幅减少更换维护频次。
灵活安装适配：支持支架壁挂、立杆安装，M 螺纹接口，适配多种现场安装条件，布线施工便捷。
宽电压驱动：适配工业电网波动，驱动稳定，适合工业现场电压波动环境，整机防爆认证齐全。
主要特点：
隔爆壳体结构：高强度合金壳体，机械强度高，抗冲击，隔爆接合面工艺可靠，符合国家防爆标准。
优异耐腐性能：WF2 防盐雾防腐，海边、化工腐蚀环境可长期使用。
光学优化：多种配光曲线可选，眩光控制好，工作面照度均匀，提升作业安全性。
长寿命低维护：一体化 LED 模组，无需更换灯泡，减少高危现场灯具检修频次。
认证完备：具备国内防爆合格证，可用于石油、化工、煤化工、油气站、制药、能源等危险区域项目验收。
经典工业外观：结构紧凑，散热设计优秀，控制表面温度满足 T6 温度组别要求，降低引燃风险。
适用场景：化工装置区、油气平台、危化仓库、加油站、制药厂、电力危险区域等 1/2 区爆炸性气体环境。
隔爆防爆安全照明：适用于爆炸性气体 1 区、2 区危险场所，IIC‑T6 防爆等级，外壳承受内部爆炸，阻止爆炸外传，满足化工、油气、电力等高危区域安全照明需求。
全天候环境适应：IP66 防护 + WF2 防腐蚀，可室外使用，抗淋雨、粉尘、盐雾腐蚀，适配室内外严苛工况。
LED 高效照明输出：多配光可选，CRI＞80 高显色，光线柔和均匀，无频闪，满足平台、装置区、仓库作业照明要求。
节能降本：LED 光源，替代传统 70‑150W 金卤灯，综合节能最高 70%，光源寿命 50000 小时，大幅减少更换维护频次。
灵活安装适配：支持支架壁挂、立杆安装，M 螺纹接口，适配多种现场安装条件，布线施工便捷。
宽电压驱动：适配工业电网波动，驱动稳定，适合工业现场电压波动环境，整机防爆认证齐全。
主要特点：
隔爆壳体结构：高强度合金壳体，机械强度高，抗冲击，隔爆接合面工艺可靠，符合国家防爆标准。
优异耐腐性能：WF2 防盐雾防腐，海边、化工腐蚀环境可长期使用。
光学优化：多种配光曲线可选，眩光控制好，工作面照度均匀，提升作业安全性。
长寿命低维护：一体化 LED 模组，无需更换灯泡，减少高危现场灯具检修频次。
认证完备：具备国内防爆合格证，可用于石油、化工、煤化工、油气站、制药、能源等危险区域项目验收。
经典工业外观：结构紧凑，散热设计优秀，控制表面温度满足 T6 温度组别要求，降低引燃风险。
适用场景：化工装置区、油气平台、危化仓库、加油站、制药厂、电力危险区域等 1/2 区爆炸性气体环境。

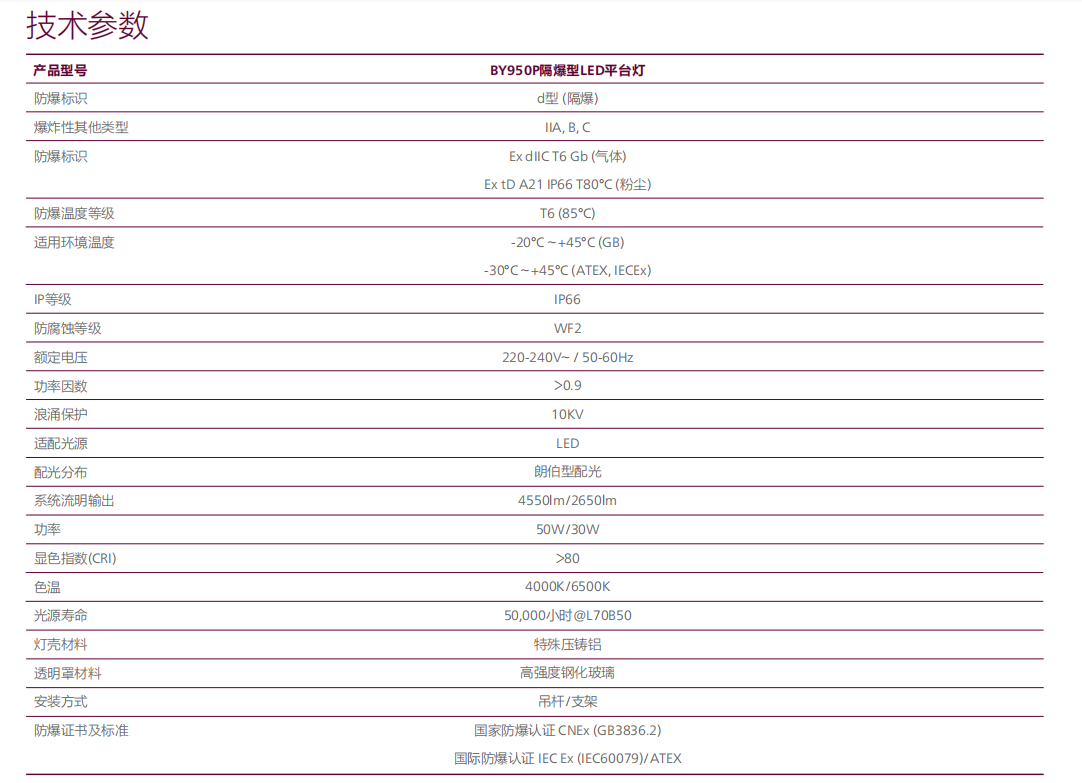

技术参数
产品型号 BY950P（可选功率 30W / 50W）
防爆型式 隔爆型 Ex d IIC T6 Gb
适用危险区域 爆炸性气体 1 区、2 区
防护等级 IP66，WF2 防腐蚀（耐盐雾）
光源类型 一体化 LED 模组，光源不可单独更换
额定功率 30W / 50W
光通量 30W≈2730lm；50W≈4550lm
光效 ≥91lm/W
显色指数 CRI＞80
色温 4000K（中性光 NW）、6500K（冷白光 CW）可选
配光类型 L‑B 朗伯配光、B‑W 蝙蝠翼配光可选
光束角 约 100°
工作电压 AC220‑240V，50/60Hz，内置驱动电源
功率因数 PF≥0.9
调光 支持 0‑10V 调光（选配）
光源寿命 50000h（L70）
外壳材质 高强度铝合金隔爆壳体，钢化玻璃灯罩
表面温度组别 T6（最高表面温度≤85℃）

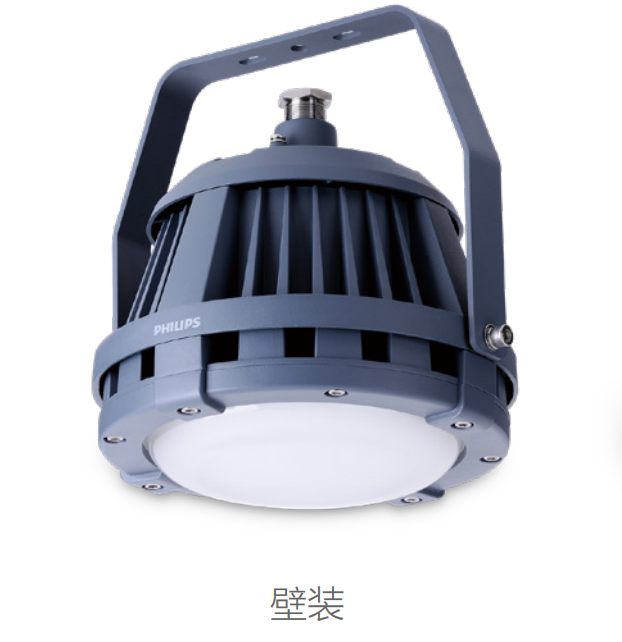

安装方式 支架壁挂、立杆安装；M 螺纹接口
环境工作温度 ‑20℃～+55℃
整机质保 3 年
执行标准 GB3836 系列防爆标准，具备国内防爆合格证
适用替代 可替代传统 70‑150W 金卤灯，最高节能 70%
防爆型式 隔爆型 Ex d IIC T6 Gb
适用危险区域 爆炸性气体 1 区、2 区
防护等级 IP66，WF2 防腐蚀（耐盐雾）
光源类型 一体化 LED 模组，光源不可单独更换
额定功率 30W / 50W
光通量 30W≈2730lm；50W≈4550lm
光效 ≥91lm/W
显色指数 CRI＞80
色温 4000K（中性光 NW）、6500K（冷白光 CW）可选
配光类型 L‑B 朗伯配光、B‑W 蝙蝠翼配光可选
光束角 约 100°
工作电压 AC220‑240V，50/60Hz，内置驱动电源
功率因数 PF≥0.9
调光 支持 0‑10V 调光（选配）
光源寿命 50000h（L70）
外壳材质 高强度铝合金隔爆壳体，钢化玻璃灯罩
表面温度组别 T6（最高表面温度≤85℃）
安装方式 支架壁挂、立杆安装；M 螺纹接口
环境工作温度 ‑20℃～+55℃
整机质保 3 年
执行标准 GB3836 系列防爆标准，具备国内防爆合格证
适用替代 可替代传统 70‑150W 金卤灯，最高节能 70%
← Back to Products
Other Products
BY950P Philips Explosion‑proof LED Luminaire
Key Features
Core Functions
Flame‑proof safety lighting: Suitable for Zone 1 and Zone 2 hazardous locations with explosive gas atmospheres. Rated Ex db IIC‑T6. The enclosure withstands internal explosions and prevents explosion propagation, meeting safety‑lighting requirements for high‑risk areas such as chemical plants, oil‑gas facilities and power‑generation sites.
All‑weather environmental adaptability: IP66 ingress protection plus WF2 anti‑corrosion rating. Approved for outdoor deployment, resisting rain, dust and salt‑spray corrosion for harsh indoor and outdoor operating conditions.
High‑efficiency LED lighting output: Multiple light‑distribution options available. CRI＞80 high colour rendering, soft and even light output with no flicker, satisfying operational lighting requirements for process platforms, plant units and warehouses.
Energy‑saving & cost reduction: LED light source replaces conventional 70‑150 W metal‑halide lamps, delivering up to 70 % overall energy savings. 50 000‑hour source service life greatly reduces replacement and maintenance frequency.
Flexible mounting adaptability: Supports bracket wall‑mounting and pole‑mounting. Metric‑threaded interface fits various site conditions for convenient cabling and installation.
Wide‑voltage driver: Tolerates industrial‑grid voltage fluctuations with stable driver performance for volatile on‑site power‑supply environments. Complete set of luminaire‑level explosion‑proof certifications.
Main Features
Flame‑proof enclosure construction: High‑strength alloy housing with robust mechanical properties and impact resistance. Reliable flame‑proof joint surfaces complying with national explosion‑proof standards.
Superior corrosion resistance: WF2 salt‑spray‑resistant performance for long‑term operation in coastal and chemically corrosive environments.
Optimized optics: Multiple light‑distribution‑curve selections with good glare control and uniform illuminance over working surfaces to improve operational safety.
Long service life & low maintenance: Integrated LED module, no lamp‑bulb replacement required, cutting inspection‑and‑repair frequency at high‑risk sites.
Complete certification portfolio: Valid domestic explosion‑proof certificate, supporting project acceptance for hazardous‑area projects including petroleum, chemical, coal‑chemical, oil‑gas stations, pharmaceutical and energy facilities.
Classic industrial styling: Compact form factor with optimized thermal design. Surface‑temperature control meets T6 temperature‑group specifications to minimise ignition risks.
Application Scenarios
Chemical‑process units, oil‑gas platforms, hazardous‑material warehouses, petrol stations, pharmaceutical plants, power‑industry hazardous zones and other Zone 1 / Zone 2 explosive‑gas atmospheres.
Flame‑proof safety lighting: Suitable for Zone 1 and Zone 2 hazardous locations with explosive gas atmospheres. Rated Ex db IIC‑T6. The enclosure withstands internal explosions and prevents explosion propagation, meeting safety‑lighting requirements for high‑risk areas such as chemical plants, oil‑gas facilities and power‑generation sites.
All‑weather environmental adaptability: IP66 ingress protection plus WF2 anti‑corrosion rating. Approved for outdoor deployment, resisting rain, dust and salt‑spray corrosion for harsh indoor and outdoor operating conditions.
High‑efficiency LED lighting output: Multiple light‑distribution options available. CRI＞80 high colour rendering, soft and even light output with no flicker, satisfying operational lighting requirements for process platforms, plant units and warehouses.
Energy‑saving & cost reduction: LED light source replaces conventional 70‑150 W metal‑halide lamps, delivering up to 70 % overall energy savings. 50 000‑hour source service life greatly reduces replacement and maintenance frequency.
Flexible mounting adaptability: Supports bracket wall‑mounting and pole‑mounting. Metric‑threaded interface fits various site conditions for convenient cabling and installation.
Wide‑voltage driver: Tolerates industrial‑grid voltage fluctuations with stable driver performance for volatile on‑site power‑supply environments. Complete set of luminaire‑level explosion‑proof certifications.
Main Features
Flame‑proof enclosure construction: High‑strength alloy housing with robust mechanical properties and impact resistance. Reliable flame‑proof joint surfaces complying with national explosion‑proof standards.
Superior corrosion resistance: WF2 salt‑spray‑resistant performance for long‑term operation in coastal and chemically corrosive environments.
Optimized optics: Multiple light‑distribution‑curve selections with good glare control and uniform illuminance over working surfaces to improve operational safety.
Long service life & low maintenance: Integrated LED module, no lamp‑bulb replacement required, cutting inspection‑and‑repair frequency at high‑risk sites.
Complete certification portfolio: Valid domestic explosion‑proof certificate, supporting project acceptance for hazardous‑area projects including petroleum, chemical, coal‑chemical, oil‑gas stations, pharmaceutical and energy facilities.
Classic industrial styling: Compact form factor with optimized thermal design. Surface‑temperature control meets T6 temperature‑group specifications to minimise ignition risks.
Application Scenarios
Chemical‑process units, oil‑gas platforms, hazardous‑material warehouses, petrol stations, pharmaceutical plants, power‑industry hazardous zones and other Zone 1 / Zone 2 explosive‑gas atmospheres.
Technical Parameters
Product Model BY950P (Optional Power: 30W / 50W)
Explosion‑proof Type Flame‑proof Ex d IIC T6 Gb
Applicable Hazardous Zones Zone 1, Zone 2 for explosive gas atmospheres
Ingress & Corrosion Protection IP66, WF2 corrosion‑resistant (salt‑spray resistant)
Light Source Type Integrated LED module; light source non‑replaceable separately
Rated Power 30W / 50W
Luminous Flux 30W ≈ 2730lm; 50W ≈ 4550lm
Luminous Efficacy ≥91lm/W
Colour Rendering Index CRI＞80
Colour Temperature 4000K (Neutral White‑NW), 6500K (Cool White‑CW), optional
Light‑distribution Type L‑B Lambertian distribution, B‑W bat‑wing distribution, optional
Beam Angle Approx. 100°
Operating Voltage AC220‑240V, 50/60Hz, built‑in driver
Power Factor PF≥0.9
Dimming 0‑10V dimming (optional)
Light Source Service Life 50000h (L70)
Housing Material High‑strength aluminum alloy flame‑proof enclosure, tempered‑glass lamp cover
Surface Temperature Class T6 (Max. surface temperature ≤85℃)
Mounting Methods Bracket wall‑mounting, pole‑mounting; Metric‑threaded interface
Operating Ambient Temperature ‑20℃～+55℃
Whole‑unit Warranty 3 years
Applicable Standards GB3836 series explosion‑proof standards, with domestic explosion‑proof certificate
Replacement Reference Suitable for replacing conventional 70‑150W metal‑halide lamps, up to 70% energy saving
Explosion‑proof Type Flame‑proof Ex d IIC T6 Gb
Applicable Hazardous Zones Zone 1, Zone 2 for explosive gas atmospheres
Ingress & Corrosion Protection IP66, WF2 corrosion‑resistant (salt‑spray resistant)
Light Source Type Integrated LED module; light source non‑replaceable separately
Rated Power 30W / 50W
Luminous Flux 30W ≈ 2730lm; 50W ≈ 4550lm
Luminous Efficacy ≥91lm/W
Colour Rendering Index CRI＞80
Colour Temperature 4000K (Neutral White‑NW), 6500K (Cool White‑CW), optional
Light‑distribution Type L‑B Lambertian distribution, B‑W bat‑wing distribution, optional
Beam Angle Approx. 100°
Operating Voltage AC220‑240V, 50/60Hz, built‑in driver
Power Factor PF≥0.9
Dimming 0‑10V dimming (optional)
Light Source Service Life 50000h (L70)
Housing Material High‑strength aluminum alloy flame‑proof enclosure, tempered‑glass lamp cover
Surface Temperature Class T6 (Max. surface temperature ≤85℃)
Mounting Methods Bracket wall‑mounting, pole‑mounting; Metric‑threaded interface
Operating Ambient Temperature ‑20℃～+55℃
Whole‑unit Warranty 3 years
Applicable Standards GB3836 series explosion‑proof standards, with domestic explosion‑proof certificate
Replacement Reference Suitable for replacing conventional 70‑150W metal‑halide lamps, up to 70% energy saving
