路灯 途云II
核心功能与特点
一、基础硬件参数
功率档位：50W/80W/100W/150W/200W（二代升级大瓦数）
供电：AC220V，宽电压适配 170‑270V，功率因数≥0.95
光效：≥120lm/W，国家 Ⅱ 级能效；色温 3000K 暖光 / 4000K 中性 / 5000K 白光；CRI≥80

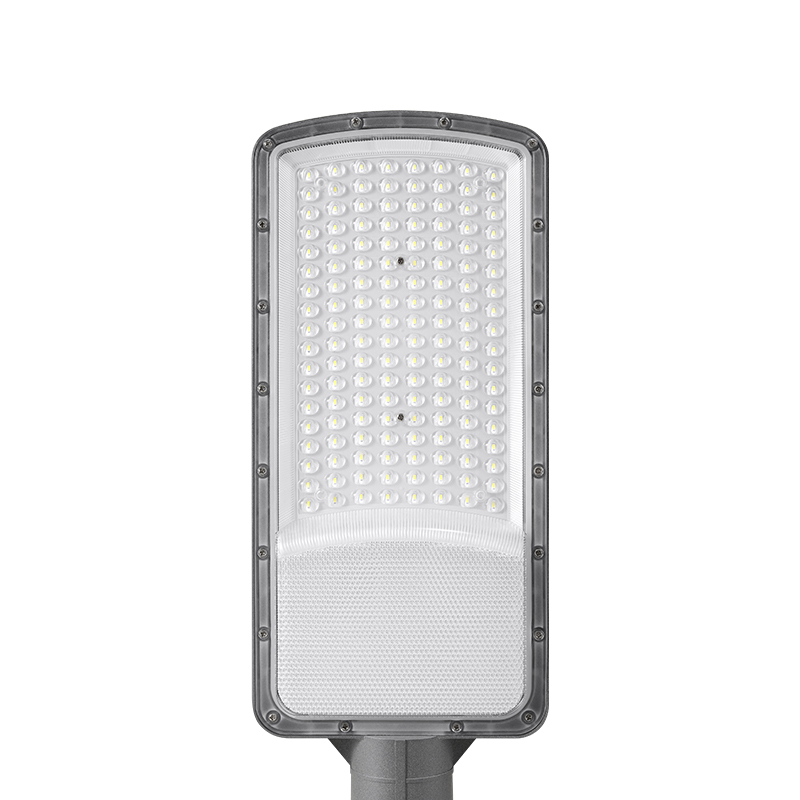

配光：蝙蝠翼光斑，70°×145°，路面照度均匀，减少眩光、无暗区
防护：IP65，带压力平衡呼吸器，硅胶全密封，解决温差凝露问题
电气防护：浪涌保护 4KV，独立隔离驱动电源，无频闪，CQC 认证
灯体：压铸铝合金鳍片散热，抗腐蚀；PC 透镜；不锈钢紧固件，户外耐候
二、核心智能功能
光感控制（可选）：外接光感探头，天黑自动开灯、天亮自动关灯，免人工时控，适合乡村道路、园区道路。
预留智能接口：可外接 7 芯光感底座，支持加装时控、调光模块，对接路灯智慧管控系统。
安装调节：灯头俯仰角度可调，抱箍适配常规路灯杆，安装调试简单。
三、产品优势特点

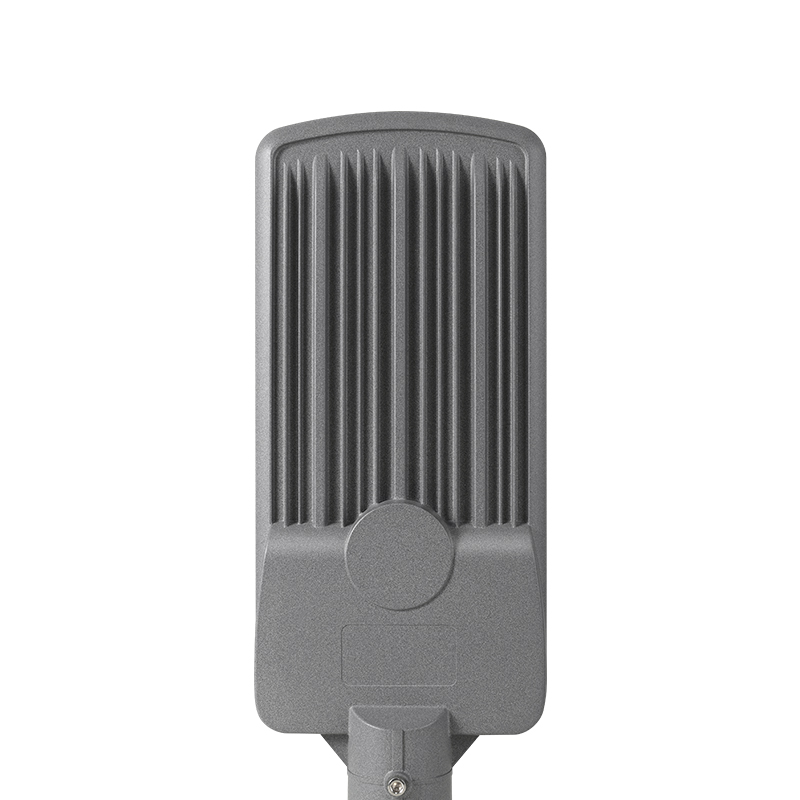

散热优化：背部鳍片式散热结构，加速散热，降低光衰，延长 LED 寿命。
抗电网波动：4KV 浪涌，适合农村、城郊电网不稳定场景，减少雷击电压冲击损坏。
工程通用性强：市政道路、国道、乡村公路、产业园区、厂区道路都适用。
维护友好：驱动独立腔体，后期维修更换方便。
四、和一代途云对比（二代主要升级）
拓展大功率版本：新增 150W、200W，适配主干道；一代最高 120W。
散热腔体结构优化，改善高温环境光衰。
接线腔结构优化，施工接线更便捷。
功率档位：50W/80W/100W/150W/200W（二代升级大瓦数）
供电：AC220V，宽电压适配 170‑270V，功率因数≥0.95
光效：≥120lm/W，国家 Ⅱ 级能效；色温 3000K 暖光 / 4000K 中性 / 5000K 白光；CRI≥80
配光：蝙蝠翼光斑，70°×145°，路面照度均匀，减少眩光、无暗区
防护：IP65，带压力平衡呼吸器，硅胶全密封，解决温差凝露问题
电气防护：浪涌保护 4KV，独立隔离驱动电源，无频闪，CQC 认证
灯体：压铸铝合金鳍片散热，抗腐蚀；PC 透镜；不锈钢紧固件，户外耐候
二、核心智能功能
光感控制（可选）：外接光感探头，天黑自动开灯、天亮自动关灯，免人工时控，适合乡村道路、园区道路。
预留智能接口：可外接 7 芯光感底座，支持加装时控、调光模块，对接路灯智慧管控系统。
安装调节：灯头俯仰角度可调，抱箍适配常规路灯杆，安装调试简单。
三、产品优势特点
散热优化：背部鳍片式散热结构，加速散热，降低光衰，延长 LED 寿命。
抗电网波动：4KV 浪涌，适合农村、城郊电网不稳定场景，减少雷击电压冲击损坏。
工程通用性强：市政道路、国道、乡村公路、产业园区、厂区道路都适用。
维护友好：驱动独立腔体，后期维修更换方便。
四、和一代途云对比（二代主要升级）
拓展大功率版本：新增 150W、200W，适配主干道；一代最高 120W。
散热腔体结构优化，改善高温环境光衰。
接线腔结构优化，施工接线更便捷。
技术参数
产品系列 途云 II（途云二代）LED 路灯
额定功率 50W、80W、100W、150W、200W
输入电源 AC170‑270V，50Hz
功率因数 ≥0.95
光源 LED
整灯光效 ≥120lm/W，国家 Ⅱ 级能效
色温 3000K/4000K/5000K 可选
显色指数 CRI ≥80
配光角度 70°×145° 蝙蝠翼配光
防护等级 IP65，带压力平衡呼吸器，防凝露
浪涌保护 4KV
安全等级 Ⅰ 类灯具
驱动方式 独立隔离驱动电源，无频闪
光通维持率 L70，50000h 寿命
工作环境温度 -20℃～+45℃
灯体材质 压铸铝合金鳍片散热壳体，PC 透镜，不锈钢紧固件
外壳颜色 银灰色
智能接口 预留 7 芯光感底座；可选配光感探头；支持外接智能控制器（0‑10V/LoRa 外置，灯具本体不带）
安装方式 抱箍式，灯头俯仰角度可调
认证 CQC 认证
标准依据 GB7000.1‑2015、GB7000.203 道路照明标准
额定功率 50W、80W、100W、150W、200W
输入电源 AC170‑270V，50Hz
功率因数 ≥0.95
光源 LED
整灯光效 ≥120lm/W，国家 Ⅱ 级能效
色温 3000K/4000K/5000K 可选
显色指数 CRI ≥80
配光角度 70°×145° 蝙蝠翼配光
防护等级 IP65，带压力平衡呼吸器，防凝露
浪涌保护 4KV
安全等级 Ⅰ 类灯具
驱动方式 独立隔离驱动电源，无频闪
光通维持率 L70，50000h 寿命
工作环境温度 -20℃～+45℃
灯体材质 压铸铝合金鳍片散热壳体，PC 透镜，不锈钢紧固件
外壳颜色 银灰色
智能接口 预留 7 芯光感底座；可选配光感探头；支持外接智能控制器（0‑10V/LoRa 外置，灯具本体不带）
安装方式 抱箍式，灯头俯仰角度可调
认证 CQC 认证
标准依据 GB7000.1‑2015、GB7000.203 道路照明标准
← Back to Products
Other Products
Tuyun II LED Street Luminaire
Key Features
Ⅰ. Basic Hardware Parameters
Power Ratings: 50W/80W/100W/150W/200W (2nd‑generation upgraded high‑power versions)
Power Supply: AC220V, wide‑voltage compatibility 170‑270V, power factor ≥0.95
Luminous Efficacy: ≥120lm/W, National Energy Efficiency Class Ⅱ; Color Temperature: 3000K(Warm White)/4000K(Neutral White)/5000K(Cool White); CRI≥80
Light Distribution: Bat‑wing beam pattern, 70°×145°, delivering uniform road‑surface illuminance, reducing glare and eliminating dark zones
Ingress Protection: IP65, equipped with pressure‑balance breather valve and full silicone sealing to solve condensation caused by temperature difference
Electrical Protection: 4KV surge protection, independent isolated driver, flicker‑free, CQC certified
Luminaire Housing: Die‑cast aluminum alloy with fin‑type heat dissipation for corrosion resistance; PC lens; stainless‑steel fasteners for outdoor weather resistance
Ⅱ. Core Intelligent Functions
Light‑sensor control (optional): External light‑sensor probe enables automatic switch‑on at dusk and switch‑off at dawn, no manual time control required, ideal for rural roads and park roads.
Reserved smart interface: Compatible with external 7‑core light‑sensor base. Supports additional time‑control and dimming modules for integration with smart street‑light management systems.
Adjustable installation: Tilt‑adjustable lamp head; hoop fits standard street‑light poles for easy installation and commissioning.
Ⅲ. Product Advantages & Features
Optimized heat dissipation: Rear fin‑type heat‑dissipation structure accelerates heat dissipation, mitigates luminous decay and extends LED service life.
Resistance to grid fluctuation: 4KV surge protection adapts to unstable power grids in rural and suburban areas, preventing damage induced by lightning‑surge voltage shocks.
Wide engineering compatibility: Suitable for municipal roads, national highways, rural highways, industrial parks and plant access roads.
User‑friendly maintenance: Independent driver chamber facilitates later‑stage repair and replacement.
Ⅳ. Comparison with 1st‑generation Tuyun Model (Major Upgrades of 2nd Generation)
Expanded high‑power options: Newly added 150W & 200W variants for arterial roads; max. power of 1st‑generation is 120W.
Optimized heat‑dissipation chamber structure to reduce luminous decay under high‑temperature conditions.
Improved wiring‑chamber design for simpler field wiring during construction.
Power Ratings: 50W/80W/100W/150W/200W (2nd‑generation upgraded high‑power versions)
Power Supply: AC220V, wide‑voltage compatibility 170‑270V, power factor ≥0.95
Luminous Efficacy: ≥120lm/W, National Energy Efficiency Class Ⅱ; Color Temperature: 3000K(Warm White)/4000K(Neutral White)/5000K(Cool White); CRI≥80
Light Distribution: Bat‑wing beam pattern, 70°×145°, delivering uniform road‑surface illuminance, reducing glare and eliminating dark zones
Ingress Protection: IP65, equipped with pressure‑balance breather valve and full silicone sealing to solve condensation caused by temperature difference
Electrical Protection: 4KV surge protection, independent isolated driver, flicker‑free, CQC certified
Luminaire Housing: Die‑cast aluminum alloy with fin‑type heat dissipation for corrosion resistance; PC lens; stainless‑steel fasteners for outdoor weather resistance
Ⅱ. Core Intelligent Functions
Light‑sensor control (optional): External light‑sensor probe enables automatic switch‑on at dusk and switch‑off at dawn, no manual time control required, ideal for rural roads and park roads.
Reserved smart interface: Compatible with external 7‑core light‑sensor base. Supports additional time‑control and dimming modules for integration with smart street‑light management systems.
Adjustable installation: Tilt‑adjustable lamp head; hoop fits standard street‑light poles for easy installation and commissioning.
Ⅲ. Product Advantages & Features
Optimized heat dissipation: Rear fin‑type heat‑dissipation structure accelerates heat dissipation, mitigates luminous decay and extends LED service life.
Resistance to grid fluctuation: 4KV surge protection adapts to unstable power grids in rural and suburban areas, preventing damage induced by lightning‑surge voltage shocks.
Wide engineering compatibility: Suitable for municipal roads, national highways, rural highways, industrial parks and plant access roads.
User‑friendly maintenance: Independent driver chamber facilitates later‑stage repair and replacement.
Ⅳ. Comparison with 1st‑generation Tuyun Model (Major Upgrades of 2nd Generation)
Expanded high‑power options: Newly added 150W & 200W variants for arterial roads; max. power of 1st‑generation is 120W.
Optimized heat‑dissipation chamber structure to reduce luminous decay under high‑temperature conditions.
Improved wiring‑chamber design for simpler field wiring during construction.
Technical Parameters
Product Series Tuyun II (2nd‑generation Tuyun) LED Street Luminaire
Rated Power 50W, 80W, 100W, 150W, 200W
Input Power Supply AC170‑270V, 50Hz
Power Factor ≥0.95
Light Source LED
System Luminous Efficacy ≥120lm/W, National Energy Efficiency Class Ⅱ
Colour Temperature 3000K / 4000K / 5000K, optional
Colour Rendering Index (CRI) ≥80
Light‑distribution Angle 70°×145°, bat‑wing light distribution
Ingress Protection Rating IP65, equipped with pressure‑balance breather valve for condensation prevention
Surge Protection 4KV
Safety Class Class Ⅰ Luminaire
Driving Mode Independent isolated driver, flicker‑free
Lumen Maintenance L70, service life of 50000 h
Operating Ambient Temperature ‑20℃ ~ +45℃
Luminaire Housing Material Die‑cast aluminum alloy housing with fin‑type heat dissipation, PC lens, stainless‑steel fasteners
Housing Colour Silver‑grey
Smart Interface Reserved 7‑core light‑sensor base; optional light‑sensor probe; supports external smart controller (0‑10V / LoRa external module, NOT built‑in in luminaire)
Mounting Method Hoop mounting, tilt‑adjustable lamp head
Certification CQC certified
Applicable Standards GB7000.1‑2015, GB7000.203 Road‑lighting standards
Rated Power 50W, 80W, 100W, 150W, 200W
Input Power Supply AC170‑270V, 50Hz
Power Factor ≥0.95
Light Source LED
System Luminous Efficacy ≥120lm/W, National Energy Efficiency Class Ⅱ
Colour Temperature 3000K / 4000K / 5000K, optional
Colour Rendering Index (CRI) ≥80
Light‑distribution Angle 70°×145°, bat‑wing light distribution
Ingress Protection Rating IP65, equipped with pressure‑balance breather valve for condensation prevention
Surge Protection 4KV
Safety Class Class Ⅰ Luminaire
Driving Mode Independent isolated driver, flicker‑free
Lumen Maintenance L70, service life of 50000 h
Operating Ambient Temperature ‑20℃ ~ +45℃
Luminaire Housing Material Die‑cast aluminum alloy housing with fin‑type heat dissipation, PC lens, stainless‑steel fasteners
Housing Colour Silver‑grey
Smart Interface Reserved 7‑core light‑sensor base; optional light‑sensor probe; supports external smart controller (0‑10V / LoRa external module, NOT built‑in in luminaire)
Mounting Method Hoop mounting, tilt‑adjustable lamp head
Certification CQC certified
Applicable Standards GB7000.1‑2015, GB7000.203 Road‑lighting standards
