磁吸灯ST307M系列
核心功能与特点
磁吸快装架构
24V 低压磁吸轨道，灯具直接吸附按压安装，可随意移位、增减灯具，无需重新布线；支持嵌入式、吸顶式磁吸轨道，工程改造、后期调整灯光布局非常方便。
高显色商用光品质
CRI≥90，SDCM≤5，色彩还原度高；UGR≤19，防眩光效果优秀，适合展厅、商铺、办公室、高端公区；无可视频闪，长时间用眼舒适昕诺飞。
完整模组化产品矩阵

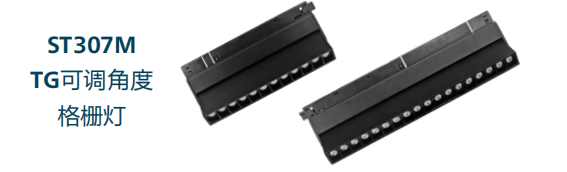

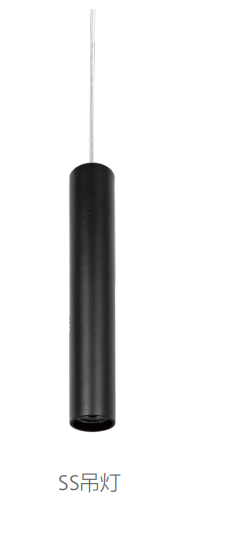

同系列可混装：聚光射灯、格栅防眩射灯、泛光洗墙灯、吊线灯、可倾斜格栅模组，一套轨道实现重点照明 + 基础环境照明组合昕诺飞。
灵活调光控制
支持两种版本：普通开关款；1‑10V 调光款，可对接 DALI 系统，实现亮度无级调节；调光能力取决于配套磁吸电源驱动器 ST307Z 系列。
结构与防护
灯体挤压铝合金壳体，散热好；IP20 手指防护，防止手指误触带电部位；IK03 抗冲击；工作温度‑20℃~+40℃；寿命 25000h。
电气安全
Ⅲ 类安全低压灯具，必须搭配 24V 恒压磁吸电源使用；功率因数 PF≥0.9；多灯并联在同一轨道，负载由电源统一限制。
24V 低压磁吸轨道，灯具直接吸附按压安装，可随意移位、增减灯具，无需重新布线；支持嵌入式、吸顶式磁吸轨道，工程改造、后期调整灯光布局非常方便。
高显色商用光品质
CRI≥90，SDCM≤5，色彩还原度高；UGR≤19，防眩光效果优秀，适合展厅、商铺、办公室、高端公区；无可视频闪，长时间用眼舒适昕诺飞。
完整模组化产品矩阵
同系列可混装：聚光射灯、格栅防眩射灯、泛光洗墙灯、吊线灯、可倾斜格栅模组，一套轨道实现重点照明 + 基础环境照明组合昕诺飞。
灵活调光控制
支持两种版本：普通开关款；1‑10V 调光款，可对接 DALI 系统，实现亮度无级调节；调光能力取决于配套磁吸电源驱动器 ST307Z 系列。
结构与防护
灯体挤压铝合金壳体，散热好；IP20 手指防护，防止手指误触带电部位；IK03 抗冲击；工作温度‑20℃~+40℃；寿命 25000h。
电气安全
Ⅲ 类安全低压灯具，必须搭配 24V 恒压磁吸电源使用；功率因数 PF≥0.9；多灯并联在同一轨道，负载由电源统一限制。
技术参数
产品型号 ST307M GreenUp Magnetic Flex 磁吸灯模组
输入电压 DC24V（必须配专用磁吸电源）
功率档位 5W、8W、9W、15W
色温选项 3000K (930) 暖白 /4000K (940) 中性白
显色指数 CRI≥90，SDCM≤5
防眩光 UGR≤19（射灯 / 格栅款）；泛光款 UGR34
光效 54‑89lm/W，随模组类型不同
调光版本 普通开关款 /1‑10V 调光款（支持 DALI，依赖驱动器）
防护等级 IP20（手指防护）
抗冲击 IK03
灯体材质 挤压铝合金，PC 光学透镜
外壳颜色 黑色
安全等级 Ⅲ 类低压安全灯具
寿命 L70，25000h
工作环境 ‑20℃～+40℃，室内使用
配套轨道 ST307 系列磁吸轨道；调光电源 ST307Z
输入电压 DC24V（必须配专用磁吸电源）
功率档位 5W、8W、9W、15W
色温选项 3000K (930) 暖白 /4000K (940) 中性白
显色指数 CRI≥90，SDCM≤5
防眩光 UGR≤19（射灯 / 格栅款）；泛光款 UGR34
光效 54‑89lm/W，随模组类型不同
调光版本 普通开关款 /1‑10V 调光款（支持 DALI，依赖驱动器）
防护等级 IP20（手指防护）
抗冲击 IK03
灯体材质 挤压铝合金，PC 光学透镜
外壳颜色 黑色
安全等级 Ⅲ 类低压安全灯具
寿命 L70，25000h
工作环境 ‑20℃～+40℃，室内使用
配套轨道 ST307 系列磁吸轨道；调光电源 ST307Z
← Back to Products
Other Products
ST307M Series Magnetic Track Luminaire
Key Features
Magnetic Quick‑mount Architecture
24V low‑voltage magnetic track enables direct push‑and‑attach installation of luminaires. Units can be repositioned, added or removed freely without re‑wiring. Compatible with recessed and surface‑mounted magnetic tracks, it greatly facilitates project retrofits and later‑stage lighting‑layout adjustments.
High‑quality Commercial‑grade Light Output
CRI≥90 and SDCM≤5 deliver superior colour reproduction. UGR≤19 provides excellent anti‑glare performance, ideal for exhibition halls, retail stores, offices and high‑end public areas. Free of visible flicker for visual comfort during long‑hour usage (Signify).
Complete Modular Product Portfolio
Mixed installation within the same series is supported: spotlight spotlights, anti‑glare grille spotlights, flood wall‑washers, pendant luminaires and tilt‑adjustable grille modules. One single track system realizes the combination of accent lighting and general ambient lighting (Signify).
Flexible Dimming Control
Two versions available: standard switch‑controlled version and 1‑10V dimmable version. The dimmable variant can interface with DALI systems for stepless brightness adjustment. Dimming performance depends on the matched ST307Z series magnetic‑track power drivers.
Structure & Protection
Extruded‑aluminum‑alloy luminaire housing ensures good heat dissipation. IP20 protection prevents accidental finger contact with live parts; IK03 impact resistance. Operating ambient temperature: ‑20℃ ~ +40℃; service life: 25000 h.
Electrical Safety
Class Ⅲ safety low‑voltage luminaires. Must be used with 24V constant‑voltage magnetic‑track power supplies. Power factor PF≥0.9. Multiple luminaires are connected in parallel on one track, with load capacity centrally limited by the power supply.
24V low‑voltage magnetic track enables direct push‑and‑attach installation of luminaires. Units can be repositioned, added or removed freely without re‑wiring. Compatible with recessed and surface‑mounted magnetic tracks, it greatly facilitates project retrofits and later‑stage lighting‑layout adjustments.
High‑quality Commercial‑grade Light Output
CRI≥90 and SDCM≤5 deliver superior colour reproduction. UGR≤19 provides excellent anti‑glare performance, ideal for exhibition halls, retail stores, offices and high‑end public areas. Free of visible flicker for visual comfort during long‑hour usage (Signify).
Complete Modular Product Portfolio
Mixed installation within the same series is supported: spotlight spotlights, anti‑glare grille spotlights, flood wall‑washers, pendant luminaires and tilt‑adjustable grille modules. One single track system realizes the combination of accent lighting and general ambient lighting (Signify).
Flexible Dimming Control
Two versions available: standard switch‑controlled version and 1‑10V dimmable version. The dimmable variant can interface with DALI systems for stepless brightness adjustment. Dimming performance depends on the matched ST307Z series magnetic‑track power drivers.
Structure & Protection
Extruded‑aluminum‑alloy luminaire housing ensures good heat dissipation. IP20 protection prevents accidental finger contact with live parts; IK03 impact resistance. Operating ambient temperature: ‑20℃ ~ +40℃; service life: 25000 h.
Electrical Safety
Class Ⅲ safety low‑voltage luminaires. Must be used with 24V constant‑voltage magnetic‑track power supplies. Power factor PF≥0.9. Multiple luminaires are connected in parallel on one track, with load capacity centrally limited by the power supply.
Technical Parameters
Product Model ST307M GreenUp Magnetic Flex Magnetic‑track Luminaire Module
Input Voltage DC24V (Mandatory for use with dedicated magnetic‑track power supply)
Power Ratings 5W, 8W, 9W, 15W
Colour Temperature Options 3000K (930) Warm White / 4000K (940) Neutral White
Colour Rendering Index CRI≥90, SDCM≤5
Anti‑Glare Performance UGR≤19 (Spotlight / grille variants); UGR34 (flood variant)
Luminous Efficacy 54‑89lm/W, varies by module type
Dimming Versions Standard switch‑controlled version / 1‑10V dimmable version (DALI compatible, subject to driver performance)
Ingress Protection IP20 (Finger‑proof protection)
Impact Resistance IK03
Luminaire Housing Material Extruded aluminium alloy, PC optical lens
Housing Colour Black
Safety Class Class Ⅲ low‑voltage safety luminaire
Service Life L70, 25000 h
Operating Conditions ‑20℃～+40℃, indoor‑use only
Matching Accessories ST307 series magnetic track; ST307Z dimmable power driver
Input Voltage DC24V (Mandatory for use with dedicated magnetic‑track power supply)
Power Ratings 5W, 8W, 9W, 15W
Colour Temperature Options 3000K (930) Warm White / 4000K (940) Neutral White
Colour Rendering Index CRI≥90, SDCM≤5
Anti‑Glare Performance UGR≤19 (Spotlight / grille variants); UGR34 (flood variant)
Luminous Efficacy 54‑89lm/W, varies by module type
Dimming Versions Standard switch‑controlled version / 1‑10V dimmable version (DALI compatible, subject to driver performance)
Ingress Protection IP20 (Finger‑proof protection)
Impact Resistance IK03
Luminaire Housing Material Extruded aluminium alloy, PC optical lens
Housing Colour Black
Safety Class Class Ⅲ low‑voltage safety luminaire
Service Life L70, 25000 h
Operating Conditions ‑20℃～+40℃, indoor‑use only
Matching Accessories ST307 series magnetic track; ST307Z dimmable power driver
