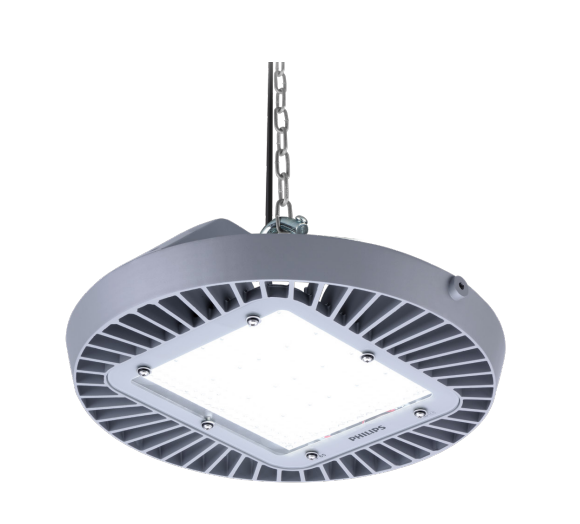

BY689P G2 飞利浦高天棚灯
核心功能与特点
耐高温工业级散热
压铸铝合金鳍片散热结构，超宽工作温度 ‑30℃～+60℃，适合高温厂房、仓库，高温环境依然稳定工作，L70B50 寿命 75000h (@35℃)，50000h (@50℃)。
高效节能
系统光效最高 135lm/W，86W 输出 11000lm；可替代传统 250W 金卤灯，综合节能可达 70% 以上，适合 EMC 节能改造项目。
多重配光可选
窄光 NB、宽光 WB 两种透镜；可配钢化玻璃（FR 雾面），适配 6‑12 米吊装高度，满足厂房、仓库不同布灯需求；SDCM≤5，色度一致性好。
防护与电气性能
防护等级 IP65，防尘防水；抗冲击 IK07
浪涌保护 6KV，适应工业电网波动
功率因数 PF≥0.95，Ⅰ 类安全灯具，CCC 认证
智能调光能力
驱动器版本可选：普通电源 / 1‑10V 调光 / DALI 数字调光，可对接楼宇照明控制系统，支持亮度调节、定时分组管理，进一步节能。
灵活安装
支持吊环悬吊、吊杆、支架壁装三种安装方式；自带 0.3m 出线，现场接线便捷；灯体小巧 φ366mm，重量仅 5kg，安装荷载压力小。
光品质
常规 CRI＞80，可定制 CRI90 高显版本；UGR＜25，降低车间眩光，改善作业视觉舒适度。
压铸铝合金鳍片散热结构，超宽工作温度 ‑30℃～+60℃，适合高温厂房、仓库，高温环境依然稳定工作，L70B50 寿命 75000h (@35℃)，50000h (@50℃)。
高效节能
系统光效最高 135lm/W，86W 输出 11000lm；可替代传统 250W 金卤灯，综合节能可达 70% 以上，适合 EMC 节能改造项目。
多重配光可选
窄光 NB、宽光 WB 两种透镜；可配钢化玻璃（FR 雾面），适配 6‑12 米吊装高度，满足厂房、仓库不同布灯需求；SDCM≤5，色度一致性好。
防护与电气性能
防护等级 IP65，防尘防水；抗冲击 IK07
浪涌保护 6KV，适应工业电网波动
功率因数 PF≥0.95，Ⅰ 类安全灯具，CCC 认证
智能调光能力
驱动器版本可选：普通电源 / 1‑10V 调光 / DALI 数字调光，可对接楼宇照明控制系统，支持亮度调节、定时分组管理，进一步节能。
灵活安装
支持吊环悬吊、吊杆、支架壁装三种安装方式；自带 0.3m 出线，现场接线便捷；灯体小巧 φ366mm，重量仅 5kg，安装荷载压力小。
光品质
常规 CRI＞80，可定制 CRI90 高显版本；UGR＜25，降低车间眩光，改善作业视觉舒适度。
技术参数
产品型号 BY689P G2 飞利浦高天棚灯
额定功率 86W（LED110）
光通量 11000lm
输入电压 AC220‑240V 50‑60Hz
光效 最高 135lm/W
色温 4000K 中性白 / 6500K 冷白
显色指数 CRI＞80，可定制 CRI90
配光 窄光 NB / 宽光 WB；可选雾面钢化玻璃 FR
功率因数 ≥0.95
防护等级 IP65；IK07 抗冲击
浪涌 6KV
调光 普通款 /1‑10V /DALI 调光（驱动器选型）
环境温度 ‑30℃～+60℃
寿命 L70B50：75000h@Ta35℃
灯体材质 压铸铝合金，PC 透镜 / 钢化玻璃
尺寸 Φ366mm，高度 135mm
重量 5kg
安装方式 吊环悬吊、吊杆、支架壁装
认证 CCC、EMC、CE、RoHS
额定功率 86W（LED110）
光通量 11000lm
输入电压 AC220‑240V 50‑60Hz
光效 最高 135lm/W
色温 4000K 中性白 / 6500K 冷白
显色指数 CRI＞80，可定制 CRI90
配光 窄光 NB / 宽光 WB；可选雾面钢化玻璃 FR
功率因数 ≥0.95
防护等级 IP65；IK07 抗冲击
浪涌 6KV
调光 普通款 /1‑10V /DALI 调光（驱动器选型）
环境温度 ‑30℃～+60℃
寿命 L70B50：75000h@Ta35℃
灯体材质 压铸铝合金，PC 透镜 / 钢化玻璃
尺寸 Φ366mm，高度 135mm
重量 5kg
安装方式 吊环悬吊、吊杆、支架壁装
认证 CCC、EMC、CE、RoHS
← Back to Products
Other Products
BY689P G2 Philips High‑bay Luminaire
Key Features
High‑temperature‑resistant Industrial‑grade Heat Dissipation
Die‑cast aluminum‑alloy fin‑type heat‑dissipation structure supports an extra‑wide operating temperature range of ‑30℃ ~ +60℃. It operates stably even in high‑temperature workshops and warehouses. L70B50 service life: 75 000 h (@35℃), 50 000 h (@50℃).
High‑efficiency & Energy‑saving
Maximum system luminous efficacy up to 135 lm/W; 86W delivers 11 000 lm. Capable of replacing conventional 250W metal‑halide lamps with over 70% comprehensive energy saving, ideal for EMC energy‑saving renovation projects.
Multiple Optional Light Distributions
Two lens options: Narrow Beam (NB) and Wide Beam (WB). Tempered‑glass (FR frosted) accessory is available. Suitable for mounting heights of 6‑12 meters to meet diverse lighting layout requirements for workshops and warehouses. SDCM ≤ 5 ensures excellent colour consistency.
Ingress Protection & Electrical Performance
IP65 dust‑proof and water‑proof rating; IK07 impact resistance.
6 kV surge protection for tolerance against industrial‑grid fluctuations.
Power factor PF ≥ 0.95, Class Ⅰ safety luminaire with CCC certification.
Intelligent Dimming Capability
Optional driver versions: standard power supply, 1‑10V dimming, DALI digital dimming. Compatible with building lighting control systems to realize brightness adjustment, scheduled group management for further energy conservation.
Flexible Installation
Three mounting options: eyebolt suspension, pendant‑rod mounting and bracket wall‑mounting. Pre‑fitted 0.3 m output cable for convenient on‑site wiring. Compact luminaire body φ366 mm with weight of only 5 kg, imposing low load stress on mounting structures.
Light Quality
Standard CRI＞80; custom high‑CRI version with CRI90 available. UGR＜25 reduces glare in workshops and improves visual comfort for operating personnel.
Die‑cast aluminum‑alloy fin‑type heat‑dissipation structure supports an extra‑wide operating temperature range of ‑30℃ ~ +60℃. It operates stably even in high‑temperature workshops and warehouses. L70B50 service life: 75 000 h (@35℃), 50 000 h (@50℃).
High‑efficiency & Energy‑saving
Maximum system luminous efficacy up to 135 lm/W; 86W delivers 11 000 lm. Capable of replacing conventional 250W metal‑halide lamps with over 70% comprehensive energy saving, ideal for EMC energy‑saving renovation projects.
Multiple Optional Light Distributions
Two lens options: Narrow Beam (NB) and Wide Beam (WB). Tempered‑glass (FR frosted) accessory is available. Suitable for mounting heights of 6‑12 meters to meet diverse lighting layout requirements for workshops and warehouses. SDCM ≤ 5 ensures excellent colour consistency.
Ingress Protection & Electrical Performance
IP65 dust‑proof and water‑proof rating; IK07 impact resistance.
6 kV surge protection for tolerance against industrial‑grid fluctuations.
Power factor PF ≥ 0.95, Class Ⅰ safety luminaire with CCC certification.
Intelligent Dimming Capability
Optional driver versions: standard power supply, 1‑10V dimming, DALI digital dimming. Compatible with building lighting control systems to realize brightness adjustment, scheduled group management for further energy conservation.
Flexible Installation
Three mounting options: eyebolt suspension, pendant‑rod mounting and bracket wall‑mounting. Pre‑fitted 0.3 m output cable for convenient on‑site wiring. Compact luminaire body φ366 mm with weight of only 5 kg, imposing low load stress on mounting structures.
Light Quality
Standard CRI＞80; custom high‑CRI version with CRI90 available. UGR＜25 reduces glare in workshops and improves visual comfort for operating personnel.
Technical Parameters
Product Model BY689P G2 Philips High‑bay Luminaire
Rated Power 86W (LED110)
Luminous Flux 11000lm
Input Voltage AC220‑240V, 50‑60Hz
Luminous Efficacy Max. 135lm/W
Colour Temperature 4000K Neutral White / 6500K Cool White
Colour Rendering Index CRI＞80; CRI90 version available upon customization
Light Distribution Narrow Beam (NB) / Wide Beam (WB); Frosted tempered‑glass (FR) optional
Power Factor ≥0.95
Ingress Protection IP65; IK07 impact resistance
Surge Protection 6KV
Dimming Standard version / 1‑10V / DALI dimming (subject to driver selection)
Ambient Operating Temperature ‑30℃ ~ +60℃
Service Life L70B50: 75000h @Ta 35℃
Housing Material Die‑cast aluminum alloy, PC lens / tempered glass
Dimensions Φ366mm, Height 135mm
Weight 5kg
Mounting Methods Eyebolt suspension, pendant‑rod mounting, bracket wall‑mounting
Certifications CCC, EMC, CE, RoHS
Rated Power 86W (LED110)
Luminous Flux 11000lm
Input Voltage AC220‑240V, 50‑60Hz
Luminous Efficacy Max. 135lm/W
Colour Temperature 4000K Neutral White / 6500K Cool White
Colour Rendering Index CRI＞80; CRI90 version available upon customization
Light Distribution Narrow Beam (NB) / Wide Beam (WB); Frosted tempered‑glass (FR) optional
Power Factor ≥0.95
Ingress Protection IP65; IK07 impact resistance
Surge Protection 6KV
Dimming Standard version / 1‑10V / DALI dimming (subject to driver selection)
Ambient Operating Temperature ‑30℃ ~ +60℃
Service Life L70B50: 75000h @Ta 35℃
Housing Material Die‑cast aluminum alloy, PC lens / tempered glass
Dimensions Φ366mm, Height 135mm
Weight 5kg
Mounting Methods Eyebolt suspension, pendant‑rod mounting, bracket wall‑mounting
Certifications CCC, EMC, CE, RoHS
