LED照明

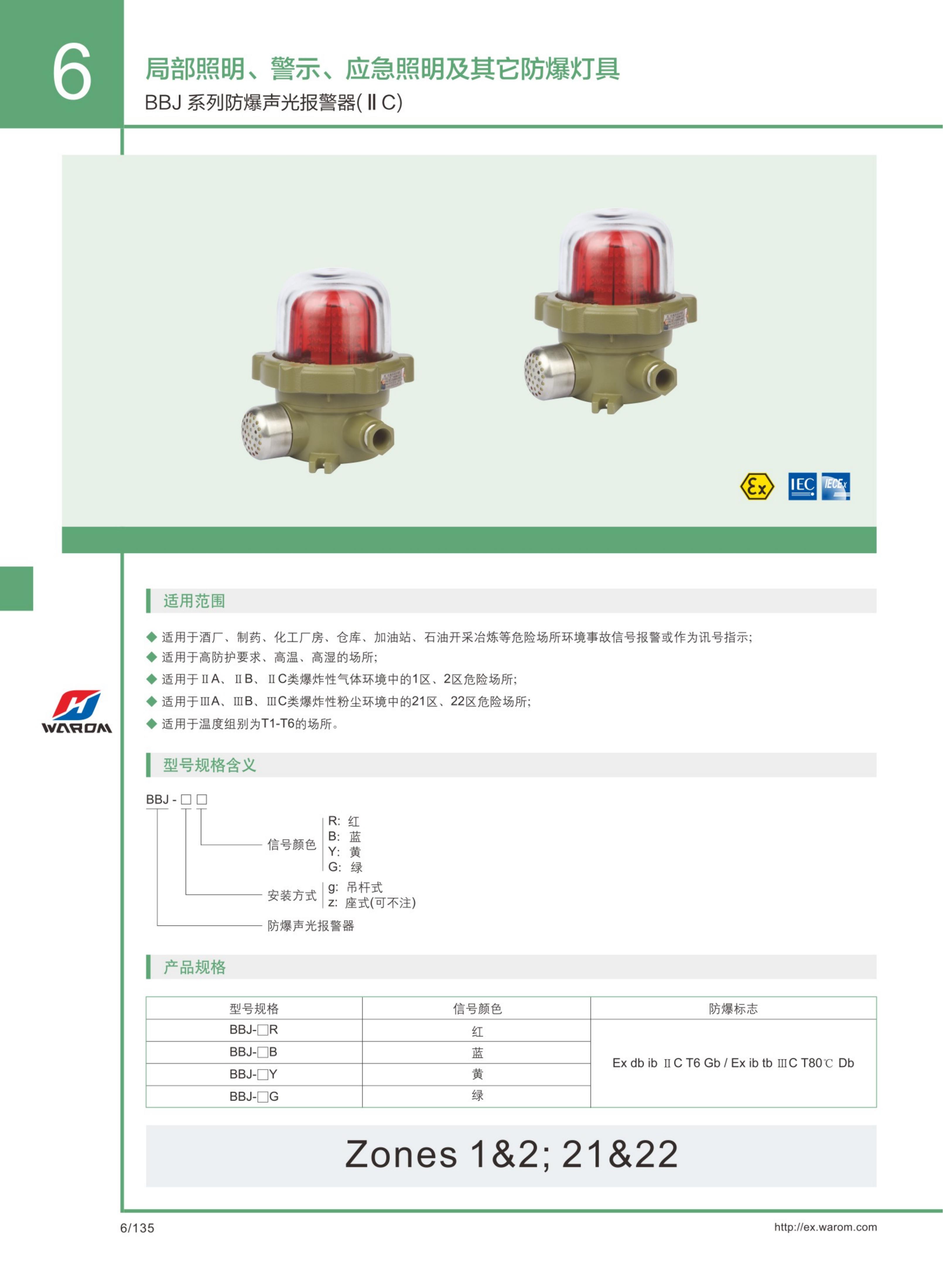

BBJ系列防爆声光报警器（IIC)
核心功能与特点
适用于酒厂、制药、化工厂房、仓库、加油站、石油开采冶炼等危险场所，用作事故报警或讯号指示。
可在高温、高湿等对防护等级要求高的场所使用。
适用于 ⅡA、ⅡB、ⅡC 类爆炸性气体环境的 1 区、2 区危险场所。
适用于 ⅢA、ⅢB、ⅢC 类爆炸性粉尘环境的 21 区、22 区危险场所。
温度组别适用 T1‑T6，环境适应能力强。
信号灯颜色可选红色、蓝色、黄色、绿色，满足不同信号警示需求。
支持吊杆式、座式两种安装方式，现场施工安装便捷。
同时具备气体防爆、粉尘防爆双重防爆资质。
可在高温、高湿等对防护等级要求高的场所使用。
适用于 ⅡA、ⅡB、ⅡC 类爆炸性气体环境的 1 区、2 区危险场所。
适用于 ⅢA、ⅢB、ⅢC 类爆炸性粉尘环境的 21 区、22 区危险场所。
温度组别适用 T1‑T6，环境适应能力强。
信号灯颜色可选红色、蓝色、黄色、绿色，满足不同信号警示需求。
支持吊杆式、座式两种安装方式，现场施工安装便捷。
同时具备气体防爆、粉尘防爆双重防爆资质。
技术参数
产品型号：BBJ‑□‑R / B / Y / G
信号颜色：红 / 蓝 / 黄 / 绿
防爆标志：Ex db ⅡC T6 Gb / Ex ib ⅢC T80℃ Db
适用危险区域：气体 1 区、2 区；粉尘 21 区、22 区
温度组别：T1‑T6
安装方式：吊杆式、座式
信号颜色：红 / 蓝 / 黄 / 绿
防爆标志：Ex db ⅡC T6 Gb / Ex ib ⅢC T80℃ Db
适用危险区域：气体 1 区、2 区；粉尘 21 区、22 区
温度组别：T1‑T6
安装方式：吊杆式、座式
← Back to Products
LED Lighting
BBJ‑Series Explosion‑proof Audible‑visual Alarm (Group ⅡC)
Key Features
Suitable for hazardous locations such as wineries, pharmaceutical workshops, chemical plants, warehouses, gas stations, oil extraction and smelting plants for accident alarm and signal indication.
Applicable to sites with high‑protection requirements under high‑temperature and high‑humidity conditions.
Suitable for Zone 1 and Zone 2 hazardous locations with ⅡA, ⅡB, ⅡC explosive gas atmosphere.
Suitable for Zone 21 and Zone 22 hazardous locations with ⅢA, ⅢB, ⅢC explosive dust atmosphere.
Temperature class T1‑T6, strong environmental adaptability.
Optional signal light colors: red, blue, yellow, green for different warning signal requirements.
Two installation types: suspension‑rod type and base‑mount type for easy field installation.
Dual certification for gas explosion‑proof and dust explosion‑proof applications.
Applicable to sites with high‑protection requirements under high‑temperature and high‑humidity conditions.
Suitable for Zone 1 and Zone 2 hazardous locations with ⅡA, ⅡB, ⅡC explosive gas atmosphere.
Suitable for Zone 21 and Zone 22 hazardous locations with ⅢA, ⅢB, ⅢC explosive dust atmosphere.
Temperature class T1‑T6, strong environmental adaptability.
Optional signal light colors: red, blue, yellow, green for different warning signal requirements.
Two installation types: suspension‑rod type and base‑mount type for easy field installation.
Dual certification for gas explosion‑proof and dust explosion‑proof applications.
Technical Parameters
Model: BBJ‑□‑R / B / Y / G
Signal Color: Red / Blue / Yellow / Green
Explosion‑proof Mark: Ex db ⅡC T6 Gb / Ex ib ⅢC T80℃ Db
Applicable Hazardous Zones: Zone1, Zone2 (Gas); Zone21, Zone22 (Dust)
Temperature Class: T1‑T6
Installation Mode: Suspension‑rod type, Base‑mount type
Signal Color: Red / Blue / Yellow / Green
Explosion‑proof Mark: Ex db ⅡC T6 Gb / Ex ib ⅢC T80℃ Db
Applicable Hazardous Zones: Zone1, Zone2 (Gas); Zone21, Zone22 (Dust)
Temperature Class: T1‑T6
Installation Mode: Suspension‑rod type, Base‑mount type
