电气元器件

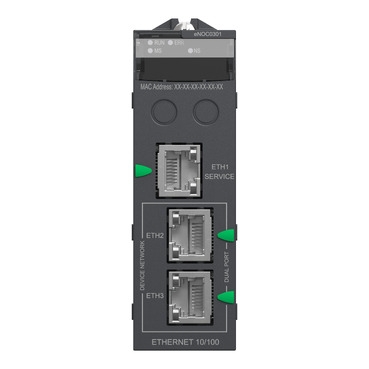

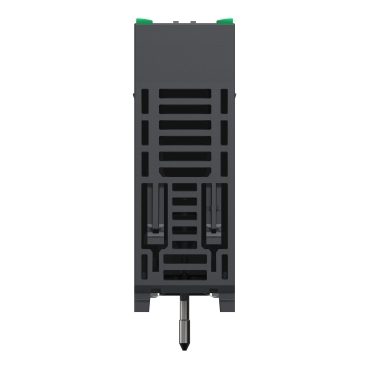

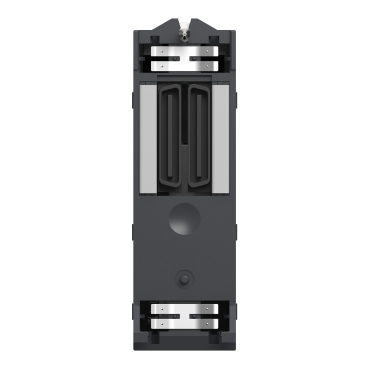

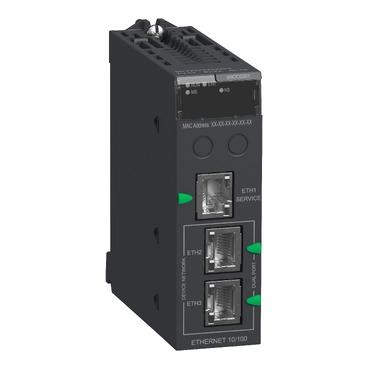

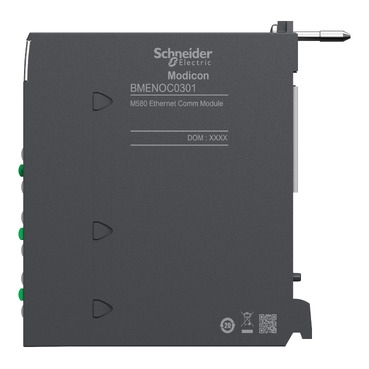

M580以太网模块
核心功能与特点
1、3 端口以太网接口，RJ45 连接器，支持 10/100Mbit/s 传输速率，双重屏蔽双绞线，集成多端口交换机。
2、支持 Modbus TCP、EtherNet/IP 等主流工业通讯协议，具备 RSTP、端口镜像、带宽管理、FDR 服务器、SNMP 网络管理功能。
3、适配 Modicon M580 全系列 CPU（单机、冗余、安全 CPU）以及 X80 机架以太网背板，兼容性强。
4、可直接安装于主机架 Ethernet+X‑bus 插槽，单机架最多可配置 4 块该通讯模块。
5、带 RUN/ERR/ETH MS/ETH NS 状态 LED 指示灯，运行故障直观可视化，便于调试维护。
6、IP20 防护等级，紧凑 32mm 模块化机身，整机净重仅 0.2kg，节省机柜安装空间。
2、支持 Modbus TCP、EtherNet/IP 等主流工业通讯协议，具备 RSTP、端口镜像、带宽管理、FDR 服务器、SNMP 网络管理功能。
3、适配 Modicon M580 全系列 CPU（单机、冗余、安全 CPU）以及 X80 机架以太网背板，兼容性强。
4、可直接安装于主机架 Ethernet+X‑bus 插槽，单机架最多可配置 4 块该通讯模块。
5、带 RUN/ERR/ETH MS/ETH NS 状态 LED 指示灯，运行故障直观可视化，便于调试维护。
6、IP20 防护等级，紧凑 32mm 模块化机身，整机净重仅 0.2kg，节省机柜安装空间。
技术参数
产品名称 M580 以太网模块‑3 端口 FactoryCast 以太网通讯
型号 BMENOC0301
产品系列 Modicon M580
产品类型 通信模块
安装位置 主机架
背板插槽位置 Ethernet + X‑bus Slot
模块占用槽位 1
单机架最大模块数量 4
供电电源 通过机架的内部电源
集成连接类型 3 路以太网，RJ45 连接器；传输速率：10/100 Mbit/s；双重屏蔽双绞线对
通讯服务 带宽管理、FDR 服务器、SNMP 网络管理员、Modbus TCP I/O 扫描器、EtherNet/IP I/O 扫描器、RSTP 支持、端口镜像、内置多端口交换机
网页服务器 用于调试、运行及维护
电流消耗 900 mA 在 3.3V 直流（固件版本≥13）；1800 mA 在 3.3V 直流（固件版本＜13）
本地信号指示 RUN 运行 LED、ERR 故障 LED、ETH MS 端口配置状态 LED、ETH NS 网络状态 LED
宽度 32 mm
高度 103.7 mm
深度 86 mm
净重 0.2 kg
IP 防护等级 IP20
适用范围 适配 Modicon M580 单机 CPU、冗余 CPU、安全 CPU，以及带以太网背板的 Modicon X80 机架
型号 BMENOC0301
产品系列 Modicon M580
产品类型 通信模块
安装位置 主机架
背板插槽位置 Ethernet + X‑bus Slot
模块占用槽位 1
单机架最大模块数量 4
供电电源 通过机架的内部电源
集成连接类型 3 路以太网，RJ45 连接器；传输速率：10/100 Mbit/s；双重屏蔽双绞线对
通讯服务 带宽管理、FDR 服务器、SNMP 网络管理员、Modbus TCP I/O 扫描器、EtherNet/IP I/O 扫描器、RSTP 支持、端口镜像、内置多端口交换机
网页服务器 用于调试、运行及维护
电流消耗 900 mA 在 3.3V 直流（固件版本≥13）；1800 mA 在 3.3V 直流（固件版本＜13）
本地信号指示 RUN 运行 LED、ERR 故障 LED、ETH MS 端口配置状态 LED、ETH NS 网络状态 LED
宽度 32 mm
高度 103.7 mm
深度 86 mm
净重 0.2 kg
IP 防护等级 IP20
适用范围 适配 Modicon M580 单机 CPU、冗余 CPU、安全 CPU，以及带以太网背板的 Modicon X80 机架
← Back to Products
Electrical Components
M580 Ethernet Module
Key Features
Equipped with 3‑port Ethernet interface with RJ45 connectors, supporting 10/100 Mbit/s transmission rate, double‑shielded twisted‑pair cable and integrated multi‑port switch.
Supports mainstream industrial communication protocols including Modbus TCP and EtherNet/IP. Features RSTP, port mirroring, bandwidth management, FDR server and SNMP network management functions.
Fully compatible with Modicon M580 series CPUs (standalone, redundant, safety CPU) and X80 rack Ethernet backplane.
Installable in Ethernet+X‑bus slot of main rack; maximum 4 modules allowed per rack.
Built‑in RUN / ERR / ETH MS / ETH NS status LED indicators for intuitive status monitoring and convenient commissioning & maintenance.
IP20 protection rating, compact 32 mm modular design with net weight of only 0.2 kg, saving cabinet installation space.
Supports mainstream industrial communication protocols including Modbus TCP and EtherNet/IP. Features RSTP, port mirroring, bandwidth management, FDR server and SNMP network management functions.
Fully compatible with Modicon M580 series CPUs (standalone, redundant, safety CPU) and X80 rack Ethernet backplane.
Installable in Ethernet+X‑bus slot of main rack; maximum 4 modules allowed per rack.
Built‑in RUN / ERR / ETH MS / ETH NS status LED indicators for intuitive status monitoring and convenient commissioning & maintenance.
IP20 protection rating, compact 32 mm modular design with net weight of only 0.2 kg, saving cabinet installation space.
Technical Parameters
Product Name M580 Ethernet Module‑3‑Port, FactoryCast Ethernet Communication
Model BMENOC0301
Product Series Modicon M580
Product Type Communication Module
Installation Position Main rack
Backplane slot location Ethernet + X‑bus Slot
Slot occupied by module 1
Maximum number of modules per rack 4
Power Supply Via rack internal power supply
Integrated connection type 3 Ethernet ports with RJ45 connectors; Rate: 10/100 Mbit/s; Double‑shielded twisted‑pair
Communication Services Bandwidth management, FDR server, SNMP network manager, Modbus TCP I/O scanner, EtherNet/IP I/O scanner, RSTP support, Port mirroring, Built‑in multi‑port switch
Web Server For commissioning, operational and maintenance
Current Consumption 900 mA @ 3.3 V DC (firmware version ≥13); 1800 mA @ 3.3 V DC (firmware version ＜13)
Local status indicators RUN LED, ERR LED, ETH MS LED, ETH NS LED
Width 32 mm
Height 103.7 mm
Depth 86 mm
Net Weight 0.2 kg
IP Rating IP20
Applicable Scope Compatible with Modicon M580 standalone CPU, Redundant CPU, Safety CPU and Modicon X80 Rack with Ethernet backplane
Model BMENOC0301
Product Series Modicon M580
Product Type Communication Module
Installation Position Main rack
Backplane slot location Ethernet + X‑bus Slot
Slot occupied by module 1
Maximum number of modules per rack 4
Power Supply Via rack internal power supply
Integrated connection type 3 Ethernet ports with RJ45 connectors; Rate: 10/100 Mbit/s; Double‑shielded twisted‑pair
Communication Services Bandwidth management, FDR server, SNMP network manager, Modbus TCP I/O scanner, EtherNet/IP I/O scanner, RSTP support, Port mirroring, Built‑in multi‑port switch
Web Server For commissioning, operational and maintenance
Current Consumption 900 mA @ 3.3 V DC (firmware version ≥13); 1800 mA @ 3.3 V DC (firmware version ＜13)
Local status indicators RUN LED, ERR LED, ETH MS LED, ETH NS LED
Width 32 mm
Height 103.7 mm
Depth 86 mm
Net Weight 0.2 kg
IP Rating IP20
Applicable Scope Compatible with Modicon M580 standalone CPU, Redundant CPU, Safety CPU and Modicon X80 Rack with Ethernet backplane
