电气元器件

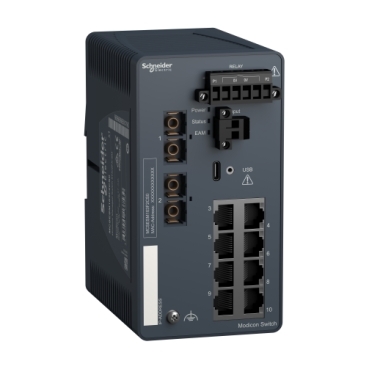

Modicon管理型交换机
核心功能与特点
1、8 个 10/100M 自适应铜电口 + 2 路 100BASE‑FX 单模 SC 光口，光电混合端口，光纤传输最远可达 32.5km，适合远距离工业组网。
2、丰富网络安全机制：端口加固、IP/MAC 端口安全、VLAN‑ACL 访问控制、RADIUS、DoS 防护、审计日志，保障工业网络安全。
3、支持 SSH/HTTP/HTTPS/SNMP/Telnet/LLDP 等多种工业管理协议，网页 Web 配置，调试运维简单高效。
4、支持 VLAN、多点传送滤波等以太网高级功能，交换机级联数量无限制，可灵活扩展网络规模。
5、采用 SC 双工光纤接口，屏蔽 RJ45 铜缆接口，适配 CAT5E 屏蔽双绞线，工业硬件适合严苛现场环境。
2、丰富网络安全机制：端口加固、IP/MAC 端口安全、VLAN‑ACL 访问控制、RADIUS、DoS 防护、审计日志，保障工业网络安全。
3、支持 SSH/HTTP/HTTPS/SNMP/Telnet/LLDP 等多种工业管理协议，网页 Web 配置，调试运维简单高效。
4、支持 VLAN、多点传送滤波等以太网高级功能，交换机级联数量无限制，可灵活扩展网络规模。
5、采用 SC 双工光纤接口，屏蔽 RJ45 铜缆接口，适配 CAT5E 屏蔽双绞线，工业硬件适合严苛现场环境。
技术参数
产品名称 Modicon 管理型交换机，8 电口 / 2 单模光口
型号 MCSESM103F2CS0
产品系列 Modicon Networking
产品类型 由以太网 TCP/IP 管理的交换机
通讯端口协议 以太网 TCP/IP、SSH、HTTP、HTTPS、SNMP、RS232、SFTP、SCP、LLDP、Telnet、SNTP
Ethernet 端口 100BASE‑FX‑2 端口光纤；10/100MB 自适应‑8 端口铜电缆
级联中的最大开关数量 无限制
网络安全 端口加固、IP 端口安全、MAC 端口安全、基于端口访问控制、基于角色访问控制、RADIUS 分配、HTTPS、DoS 防护、VLAN‑based ACL、审计跟踪、SNMP 日志、登录前提示横幅
集成连接类型 双工 SC 光纤；屏蔽的 RJ45 铜电缆
传输支持媒质 单模光纤；CAT 5E 屏蔽双绞线铜电缆
设备间最大电缆距离 100 m（铜电缆）
光纤长度 32.5 km（9/126 μm）
衰减 0…16 dB（9/126 μm）
以太网服务 网页服务器配置、VLAN、多点传送滤波
型号 MCSESM103F2CS0
产品系列 Modicon Networking
产品类型 由以太网 TCP/IP 管理的交换机
通讯端口协议 以太网 TCP/IP、SSH、HTTP、HTTPS、SNMP、RS232、SFTP、SCP、LLDP、Telnet、SNTP
Ethernet 端口 100BASE‑FX‑2 端口光纤；10/100MB 自适应‑8 端口铜电缆
级联中的最大开关数量 无限制
网络安全 端口加固、IP 端口安全、MAC 端口安全、基于端口访问控制、基于角色访问控制、RADIUS 分配、HTTPS、DoS 防护、VLAN‑based ACL、审计跟踪、SNMP 日志、登录前提示横幅
集成连接类型 双工 SC 光纤；屏蔽的 RJ45 铜电缆
传输支持媒质 单模光纤；CAT 5E 屏蔽双绞线铜电缆
设备间最大电缆距离 100 m（铜电缆）
光纤长度 32.5 km（9/126 μm）
衰减 0…16 dB（9/126 μm）
以太网服务 网页服务器配置、VLAN、多点传送滤波
← Back to Products
Electrical Components
Modicon Managed Switch
Key Features
Equipped with 8‑port 10/100 Mbps auto‑negotiation copper ports and 2‑port 100BASE‑FX single‑mode SC fiber ports. Hybrid fiber‑copper design, fiber transmission distance up to 32.5 km for long‑distance industrial networking.
Comprehensive network security features: port security, IP‑based & MAC‑based port security, VLAN‑ACL, RADIUS assignment, DoS prevention and audit trail to secure industrial network.
Supports multiple management protocols including SSH, HTTP, HTTPS, SNMP, Telnet and LLDP. Web‑page configuration for easy commissioning and maintenance.
Advanced Ethernet functions such as VLAN and multicast filtering. Unlimited switch cascading quantity for flexible network expansion.
Duplex SC fiber connectors and shielded RJ45 ports for CAT5E shielded twisted‑pair cables, hardware built for harsh industrial field conditions.
Comprehensive network security features: port security, IP‑based & MAC‑based port security, VLAN‑ACL, RADIUS assignment, DoS prevention and audit trail to secure industrial network.
Supports multiple management protocols including SSH, HTTP, HTTPS, SNMP, Telnet and LLDP. Web‑page configuration for easy commissioning and maintenance.
Advanced Ethernet functions such as VLAN and multicast filtering. Unlimited switch cascading quantity for flexible network expansion.
Duplex SC fiber connectors and shielded RJ45 ports for CAT5E shielded twisted‑pair cables, hardware built for harsh industrial field conditions.
Technical Parameters
Product Name Modicon Managed Switch, 8 Electrical Ports / 2 Single‑Mode Fiber Ports
Model MCSESM103F2CS0
Product Series Modicon Networking
Product Type Ethernet TCP/IP managed switch
Communication Port Protocols Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, RS232, SFTP, SCP, LLDP, Telnet, SNTP
Ethernet Ports 100BASE‑FX‑2 fiber ports; 10/100 Mbps auto‑negotiation‑8 copper ports
Maximum number of switches in cascade Unlimited
Network Security Port security, IP‑based port security, MAC‑based port security, Port‑based access control, Role‑based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN‑based ACL, Audit trail, SNMP logging, Pre‑login banner
Integrated connection type Duplex SC fiber; Shielded RJ45 copper cable
Supported Transmission Media Single‑mode fiber; CAT 5E shielded twisted‑pair copper cable
Maximum cable distance between devices 100 m (copper cable)
Fiber Length 32.5 km (9/126 μm)
Attenuation 0…16 dB (9/126 μm)
Ethernet Services Web‑server configuration, VLAN, Multicast filtering
Model MCSESM103F2CS0
Product Series Modicon Networking
Product Type Ethernet TCP/IP managed switch
Communication Port Protocols Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, RS232, SFTP, SCP, LLDP, Telnet, SNTP
Ethernet Ports 100BASE‑FX‑2 fiber ports; 10/100 Mbps auto‑negotiation‑8 copper ports
Maximum number of switches in cascade Unlimited
Network Security Port security, IP‑based port security, MAC‑based port security, Port‑based access control, Role‑based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN‑based ACL, Audit trail, SNMP logging, Pre‑login banner
Integrated connection type Duplex SC fiber; Shielded RJ45 copper cable
Supported Transmission Media Single‑mode fiber; CAT 5E shielded twisted‑pair copper cable
Maximum cable distance between devices 100 m (copper cable)
Fiber Length 32.5 km (9/126 μm)
Attenuation 0…16 dB (9/126 μm)
Ethernet Services Web‑server configuration, VLAN, Multicast filtering
